How To Attach Hambone Mounting Hardware

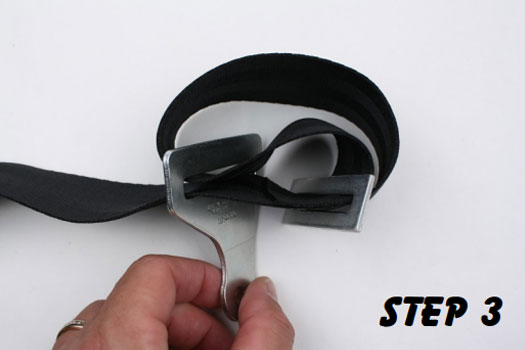

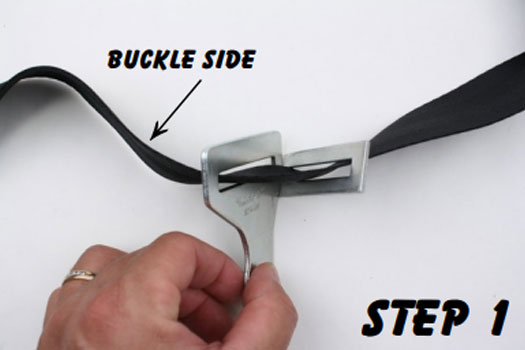

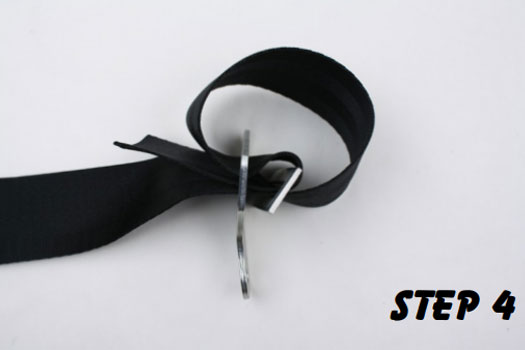

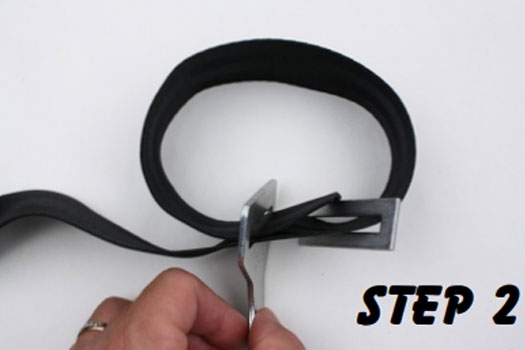

 Step 1 Pull the seat belt webbing through both pieces of the mounting hardware. Position the mounting hardware so that the hambone shaped piece is towards the seat belt buckle. Step 2 Loop the webbing end around and back through the top of the hambone shaped piece. Step 3 Loop the webbing end up, around, and then back through the small mounting bracket. Step 4 Pull the webbing back through the hambone shaped mounting piece in between the other two layers of webbing and pull tight.

1958-1962 Corvettle Lap Seat Belt Installation Diagram

Download 1958-1962 Corvette Lap Seat Belt Instructions
