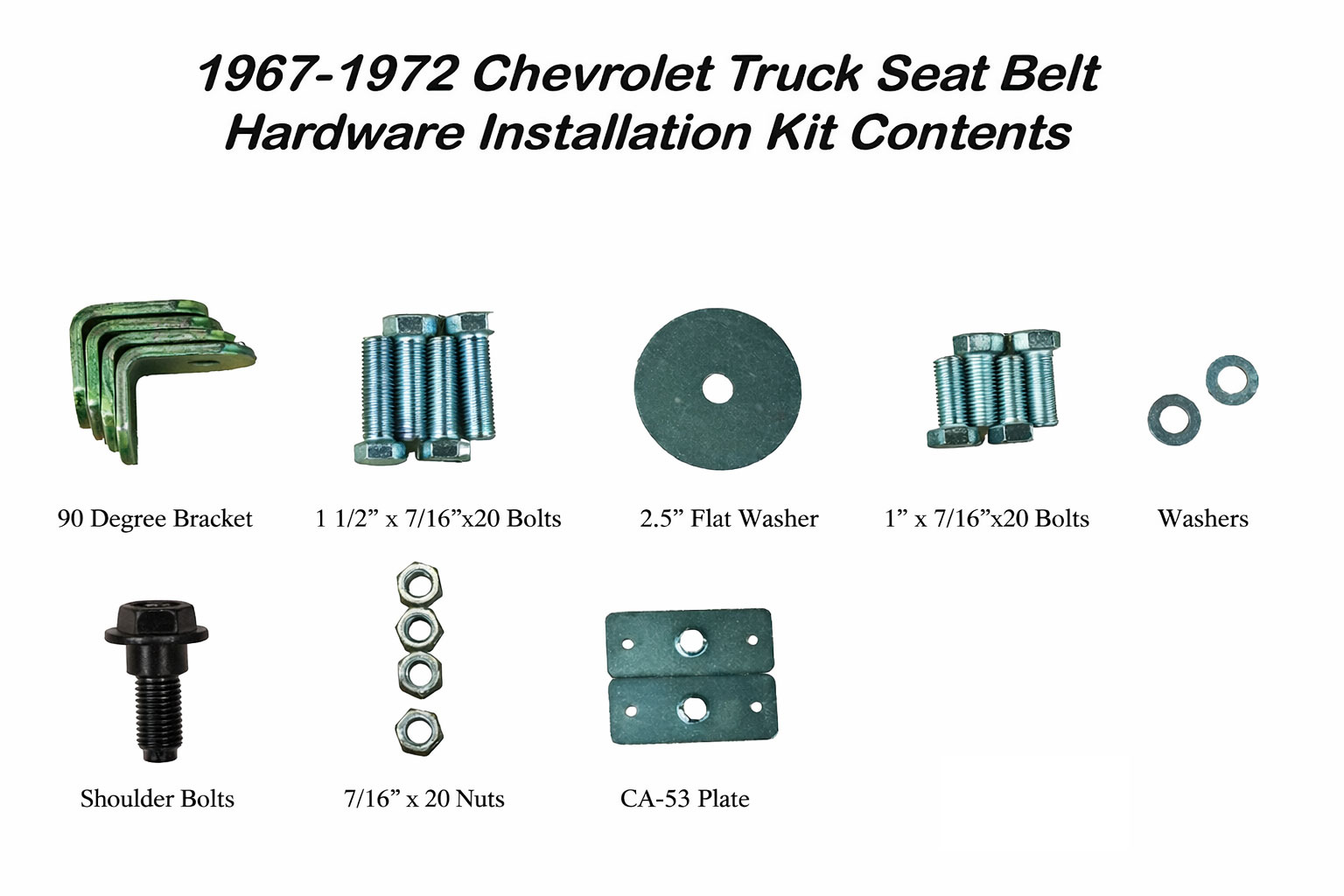

The hardware included in this kit has been designed to work your specific vehicle. If your vehicle has existing anchor mounting points installed you may not need all of the provided hardware. You may reuse factory mounting bolts if you have them.

NOTE: This is an installation guide only, designed to aide you during the process of installing your new seat belts. Some installations may not be covered therefore it will be the installers responsibility to determine the safest mounting location.

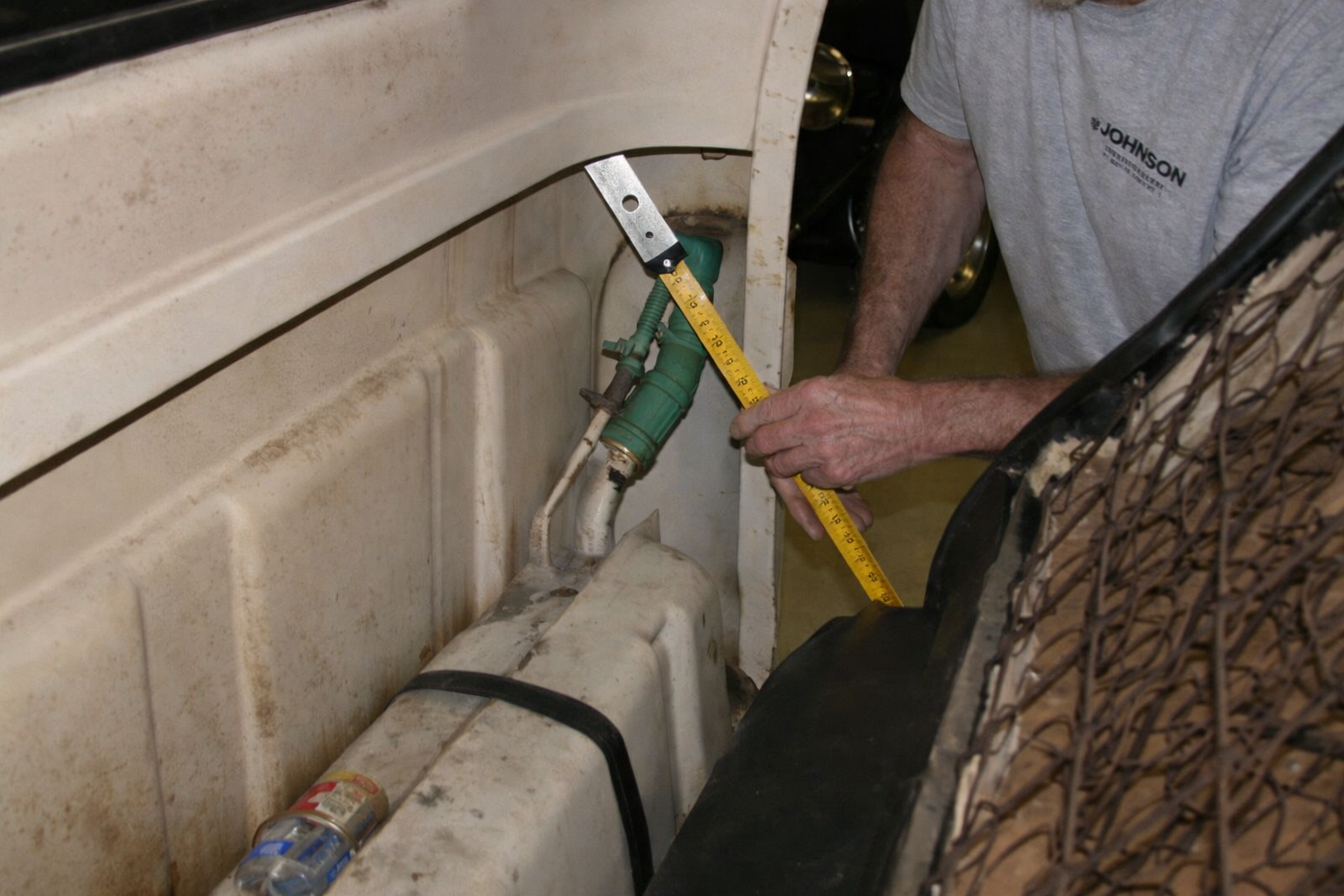

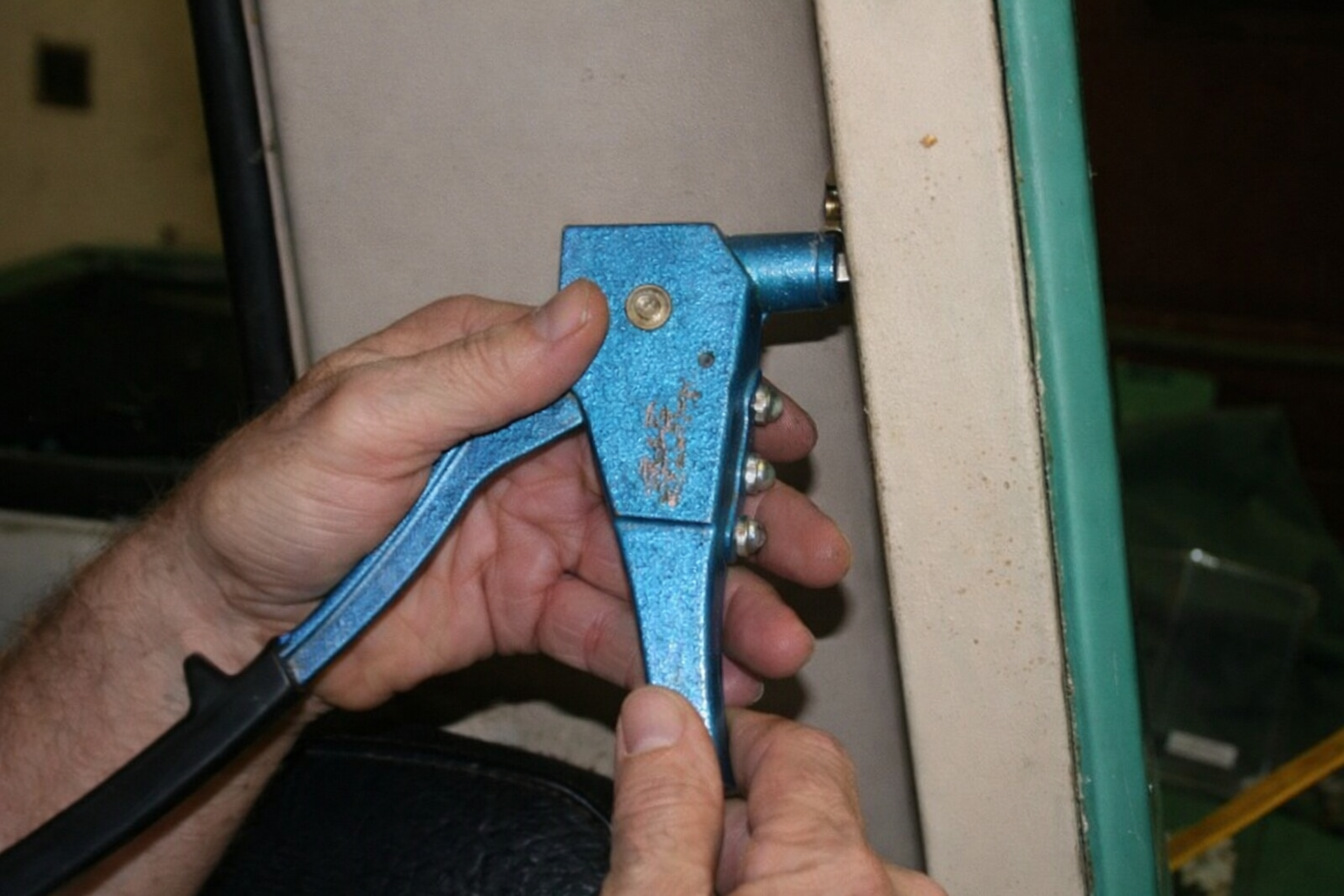

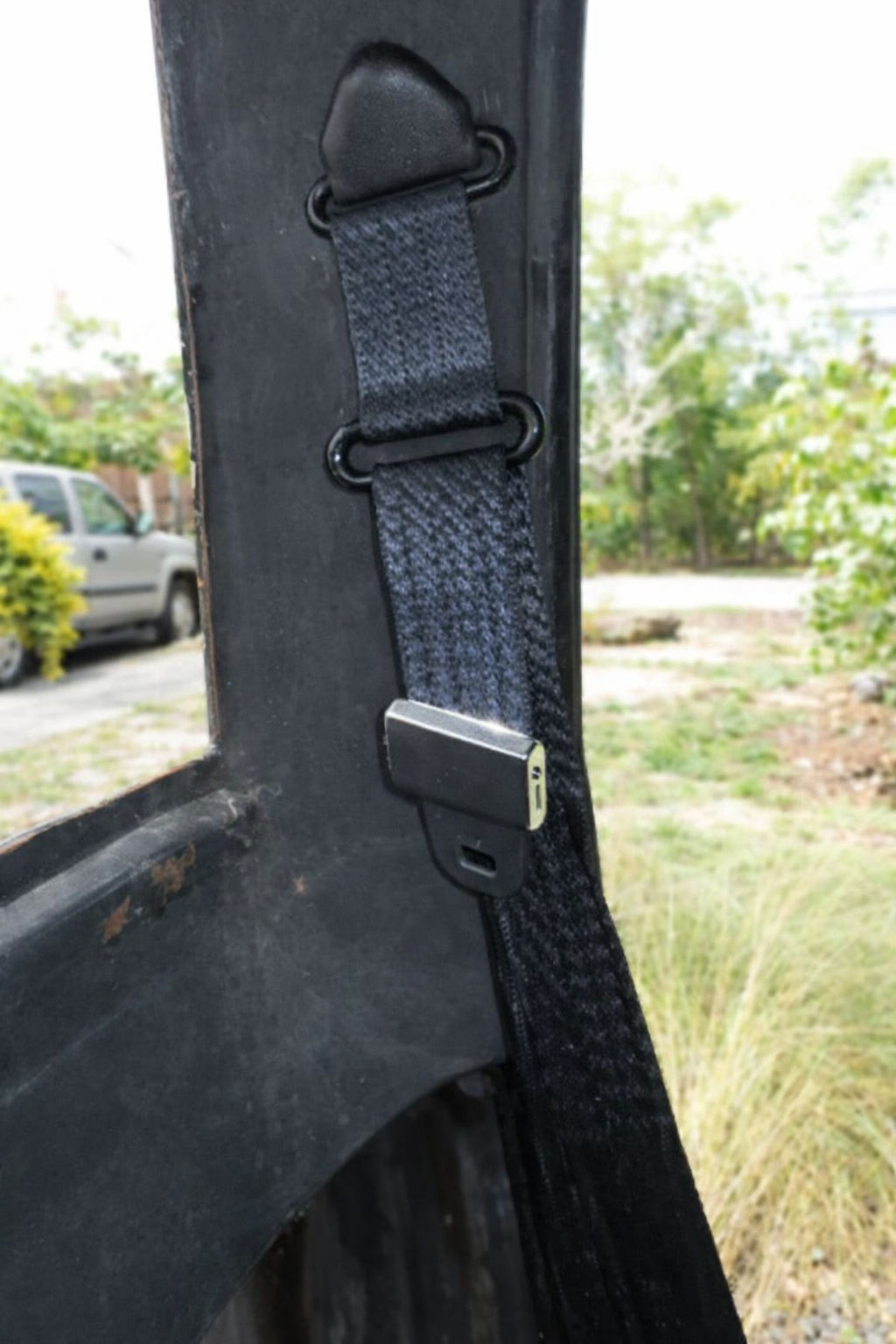

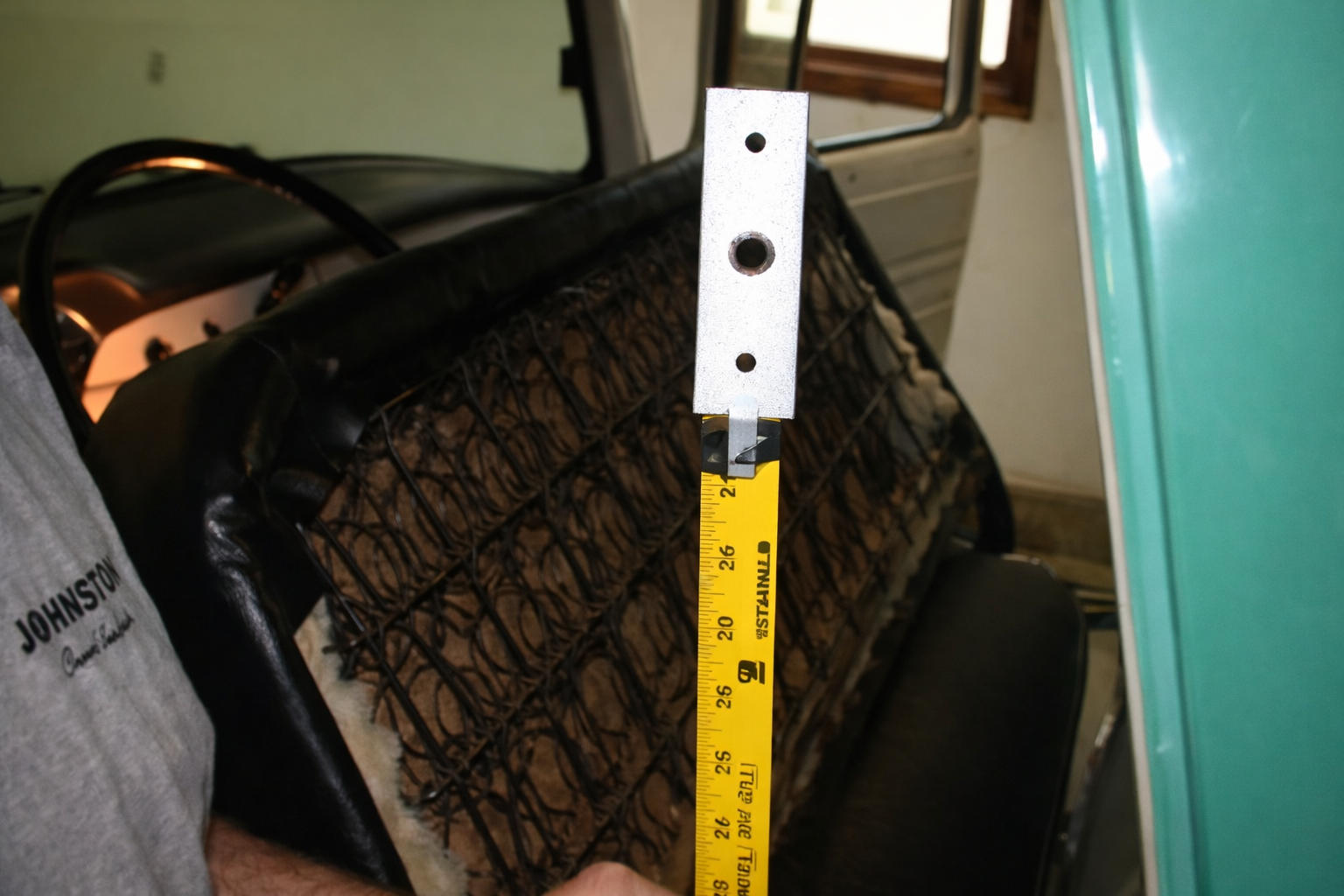

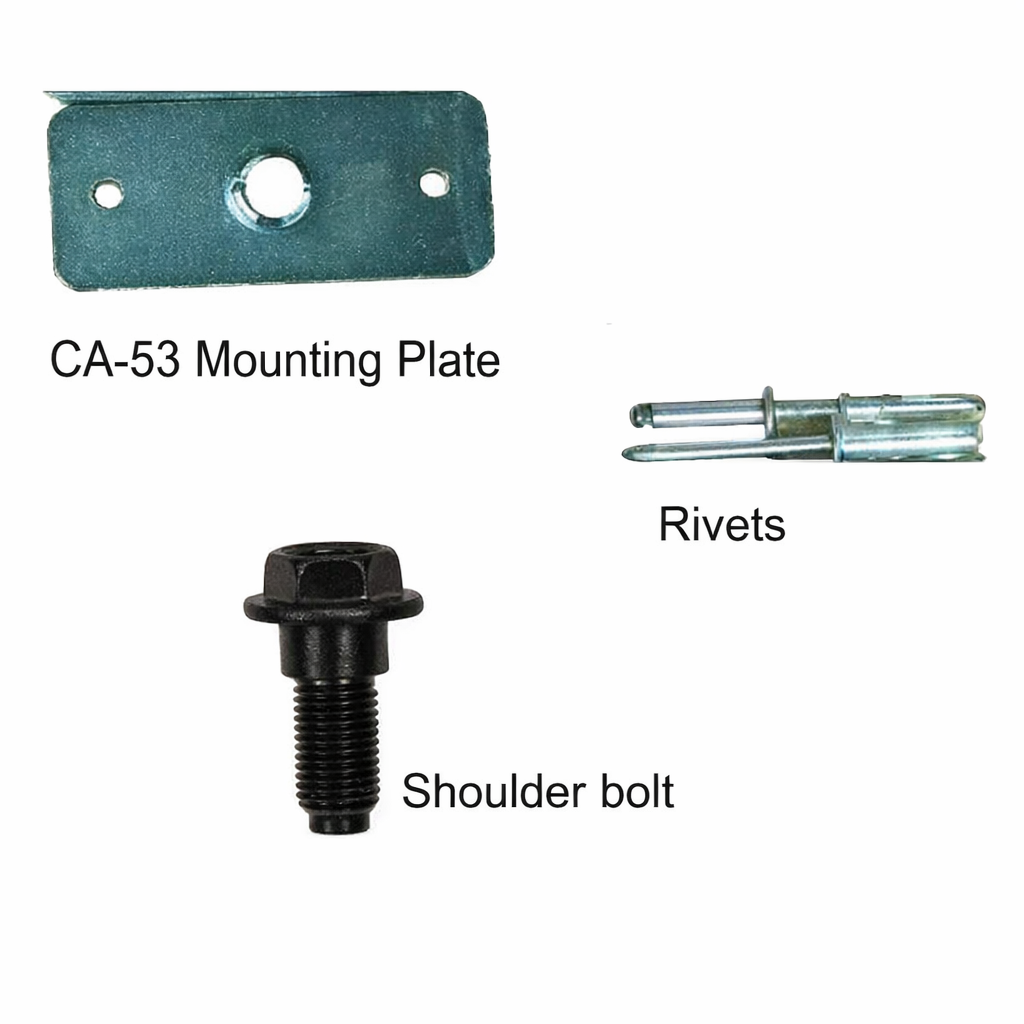

 Step 1 Remove old seatbelts. Clean any debris and rust out of threaded holes with a wire brush or thread chaser. If necessary, remove the front seats making sure to set the mounting bolts aside Step 2 Most 1967-1972 Chevy trucks have the threaded shoulder belt mounting hole installed from the factory. If your truck does not have the mounting from the the factory you can use the CA-53 flat plate provided with the hardware kit to make the shoulder mount. The hole should be approximately 7 inches above the bottom of the rear glass opening as seen in the photo to the left. Mark the location and move on to the next step. Step 3 Once you’ve marked the location for the shoulder mount you can drill a hole making sure you don’t go through the exterior panel. Use of a limiter on your drill is recommended. You may also want to remove the interior trim panel to access the support panel you’ll be installing the shoulder mount plate to. Step 4 Next you will need to attached the mounting plate to a long stick, welding rod or similar item to slide the plate behind the support panel then install a bolt in the large hole to hold the plate in position so you can drill the two smaller holes for the rivets. Step 5 Install the plate. Step 6 Install the rivets. You can now remove the bolt used to hold the plate in place. Step 7 Next you can install the retractor unit using the original mounting holes on the floor just under the gas tank. The mounting brackets are left and right specific and move the retractor out and away from the tank. Step 8 Once you have the retractors mounted and the shoulder loop installed you can bolt in the buckles.

Download 1967-1972 Chevy Truck Seat Belt Installation Instructions
