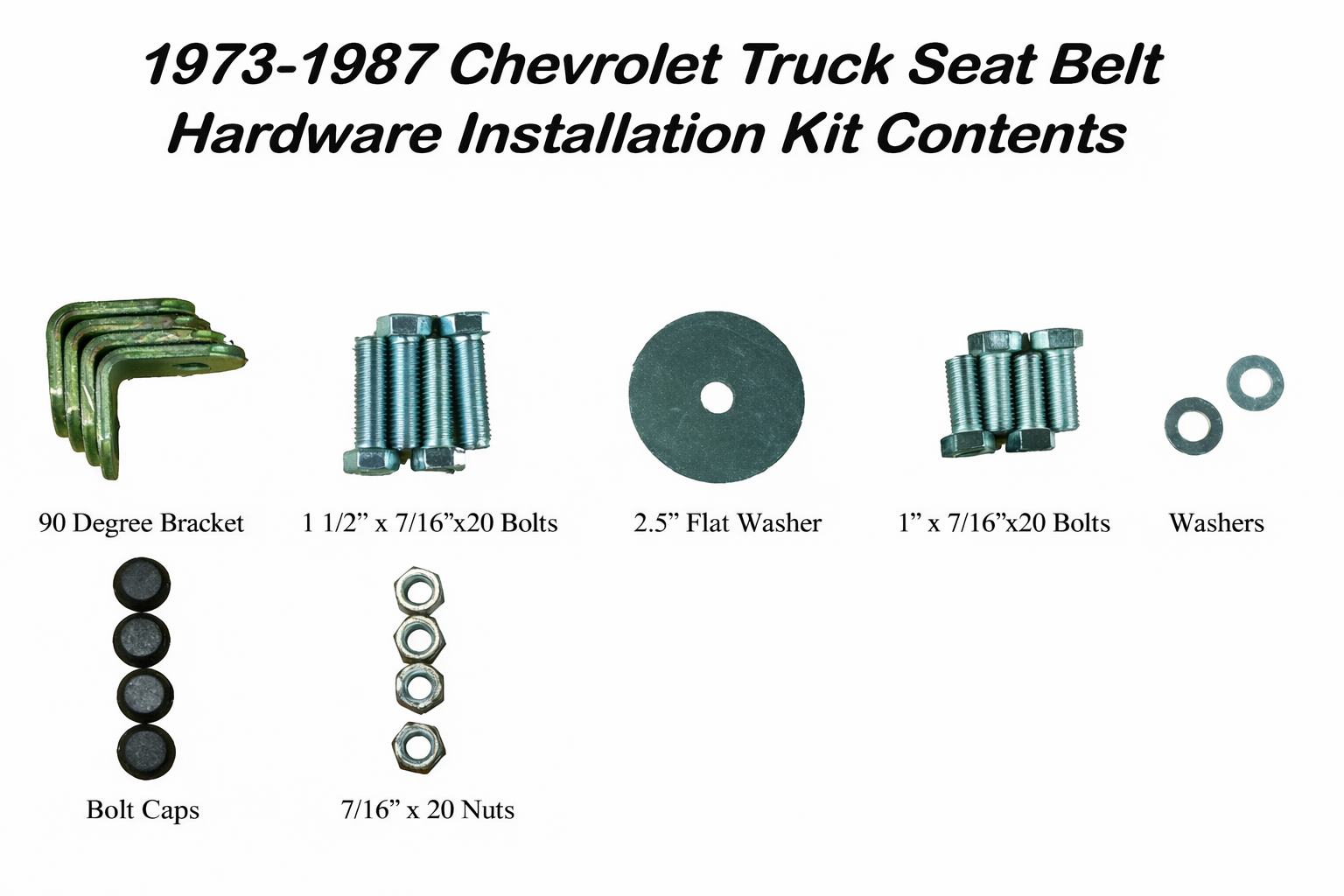

The hardware included in this kit has been designed to work your specific vehicle. If your vehicle has existing anchor mounting points installed you may not need all of the provided hardware. You may reuse factory mounting bolts if you have them.

NOTE: This is an installation guide only, designed to aide you during the process of installing your new seat belts. Some installations may not be covered therefore it will be the installers responsibility to determine the safest mounting location.

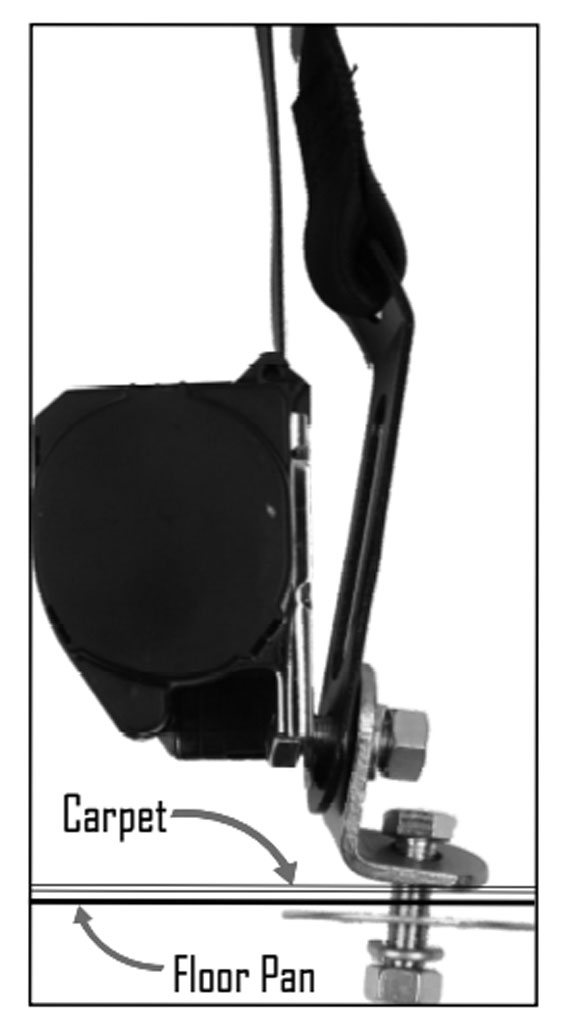

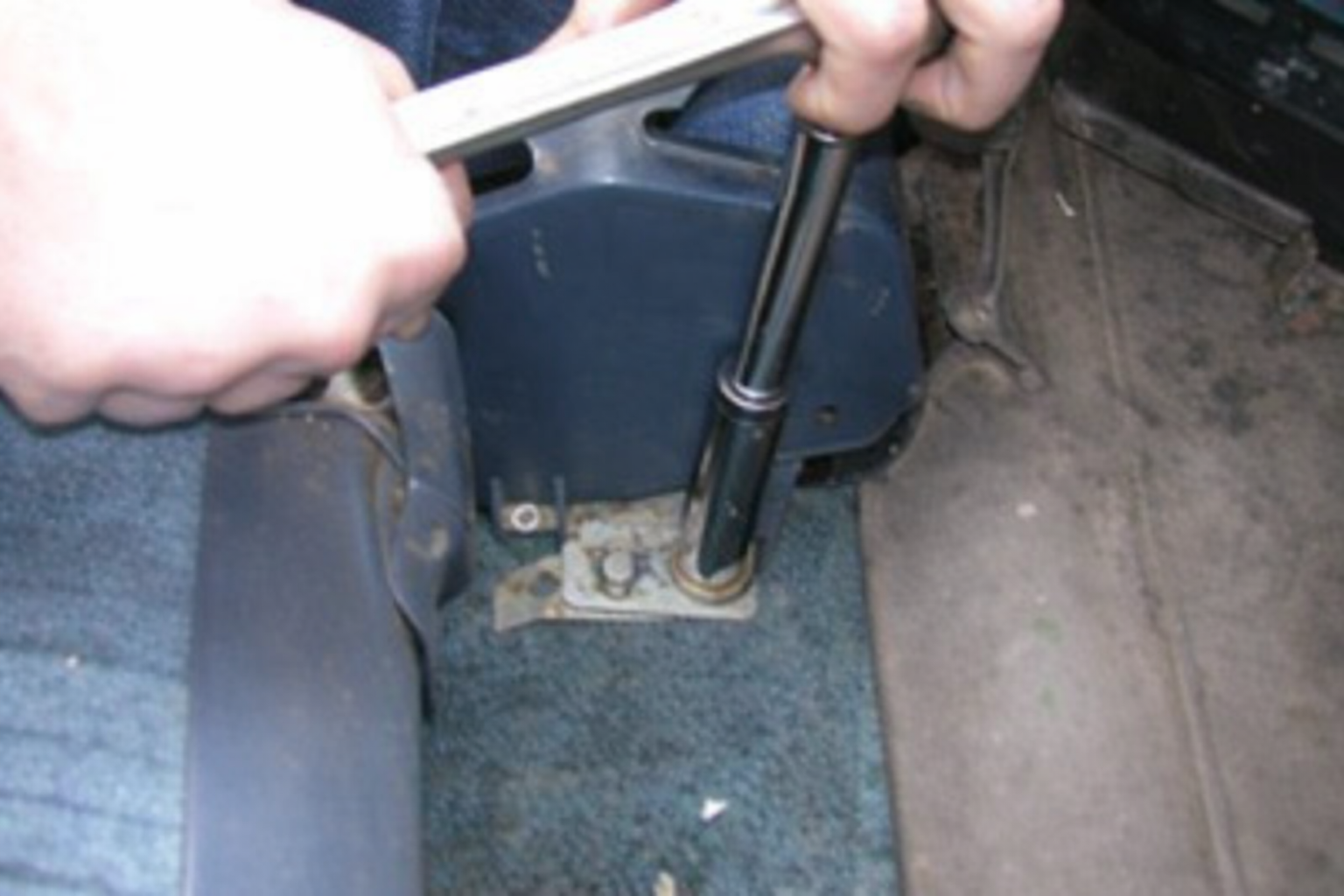

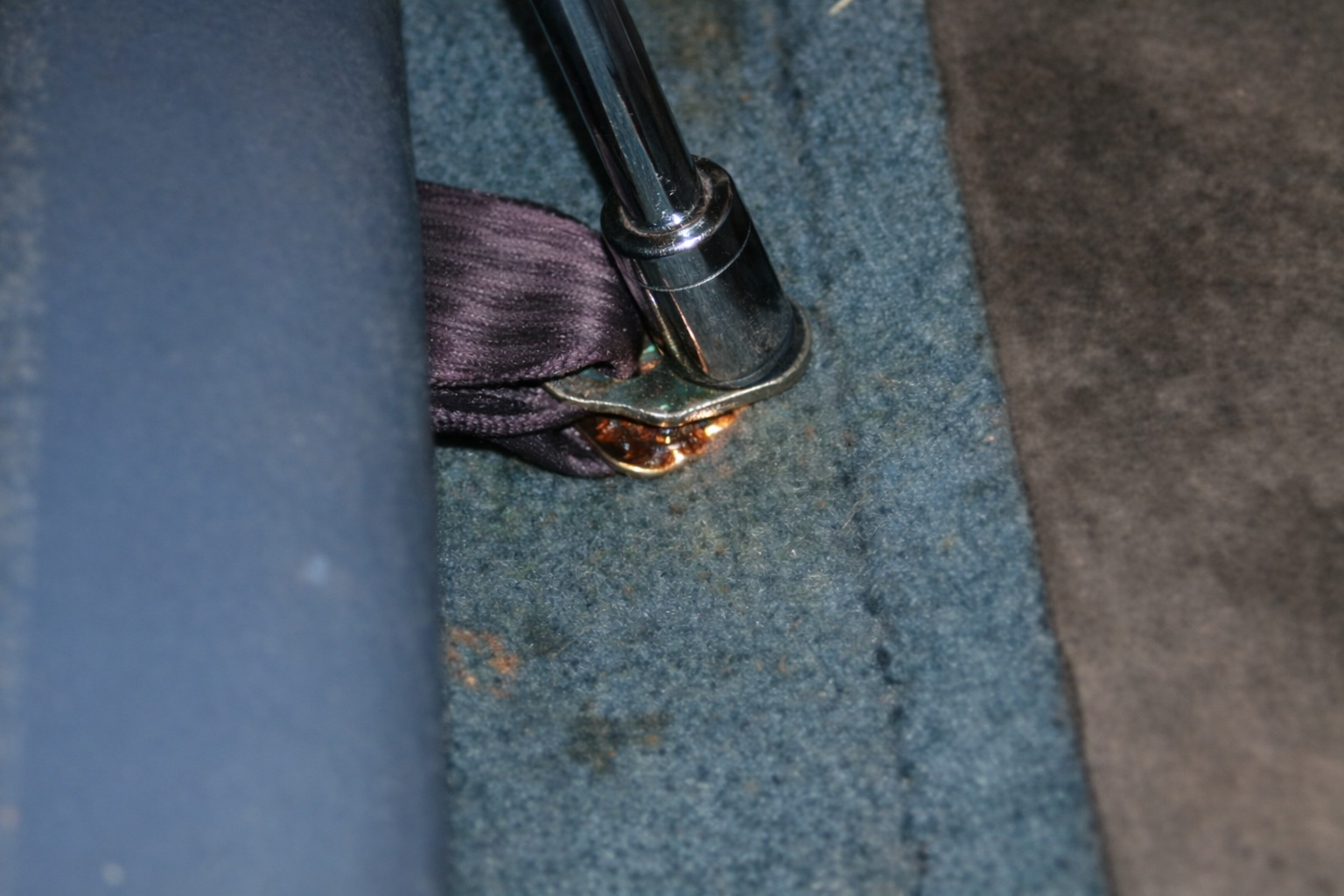

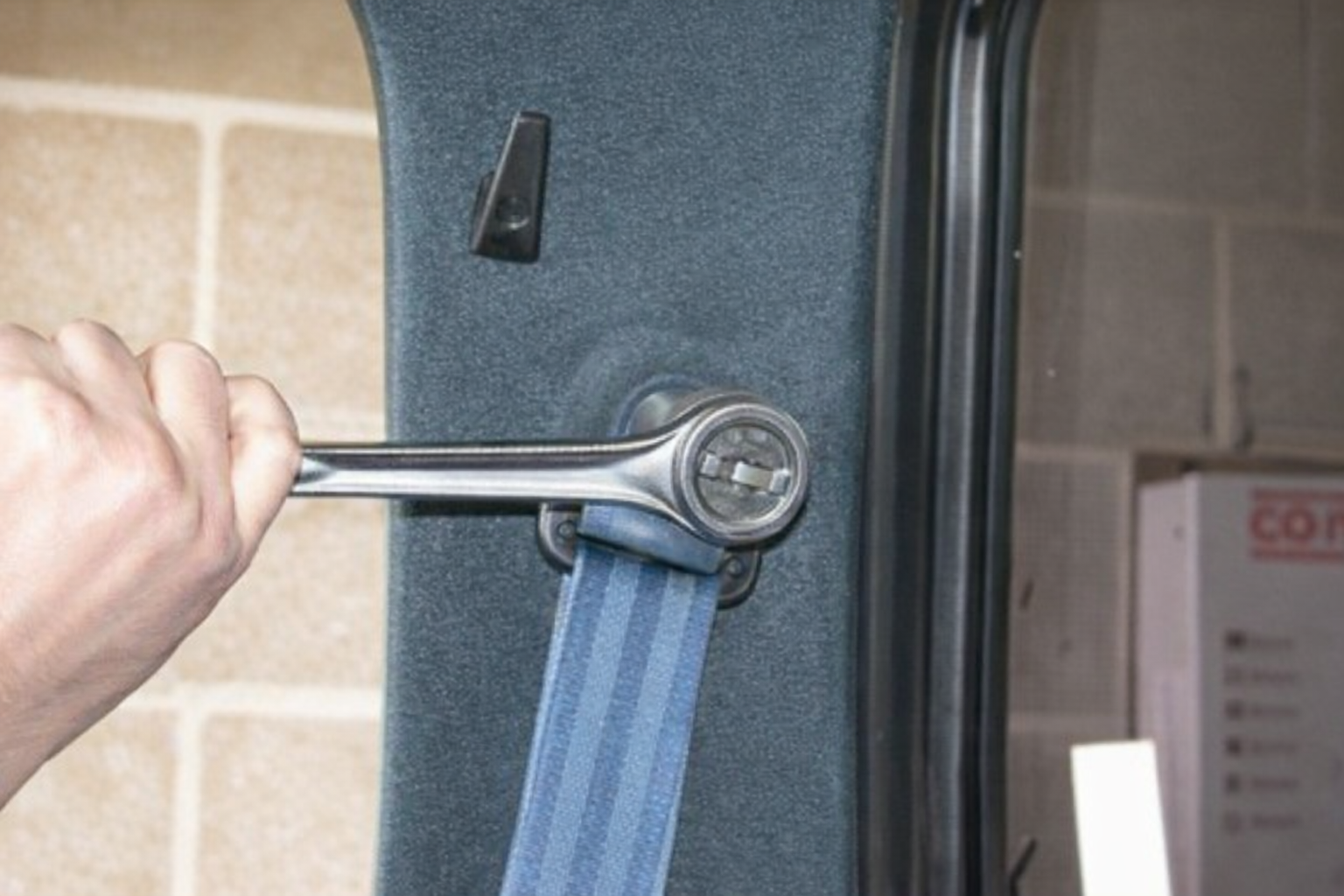

 Step 1 Remove old seatbelts. Clean any debris and rust out of threaded holes with a wire brush or thread chaser. If necessary, remove the front seats making sure to set the mounting bolts aside. Step 2 First remove the factory shoulder loop from your vehicle and install the new (door post fitting - DPF) that came with your new seat belts. You may reuse the factory shoulder bolt then install the plastic cover provided. Step 3 Next you can remove the dual retractor unit and bolt the 90 degree ā€œLā€ bracket in the factory mounting hole. Step 4 Install the new retractor as shown with the long anchor sharing the same bolt as the retractor. Retractor may vary in appearance. Step 5 Last you can install the new buckle ends in the factory mounting location. Use the 90 degree L bracket bucket seat with sleeves.

Download 1973-1987 Chevy Truck Seat Belt Installation Instructions
