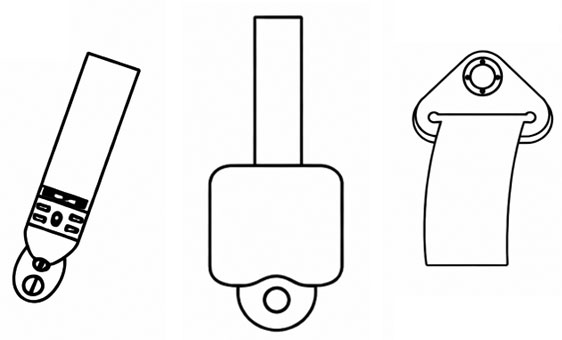

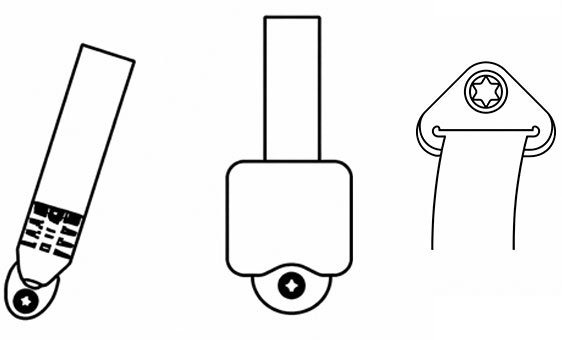

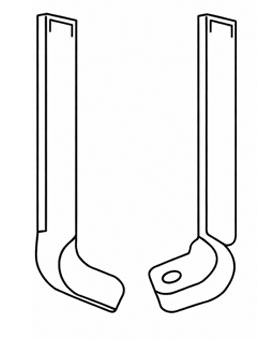

Step 1 Remove the black cap from the roll bar anchor with a screw driver. Step 2 Remove the three bolts at the seat belt retractor, buckle end, and shoulder bolt using a torx socket. Step 3 Reinstall the new seat belt set using the same three bolts Step 4 Remove the bolt from the buckle sleeve boot. Remove the staple from the center of the boot and pull the buckle out of the sleeve. Use a metal coat hanger to make a hook and the end and pull the new buckle into the buckle sleeve. Bolt buckle back into place.

Download 1982-1991 Jeep Wrangler Front Seat Belt Installation Instructions
